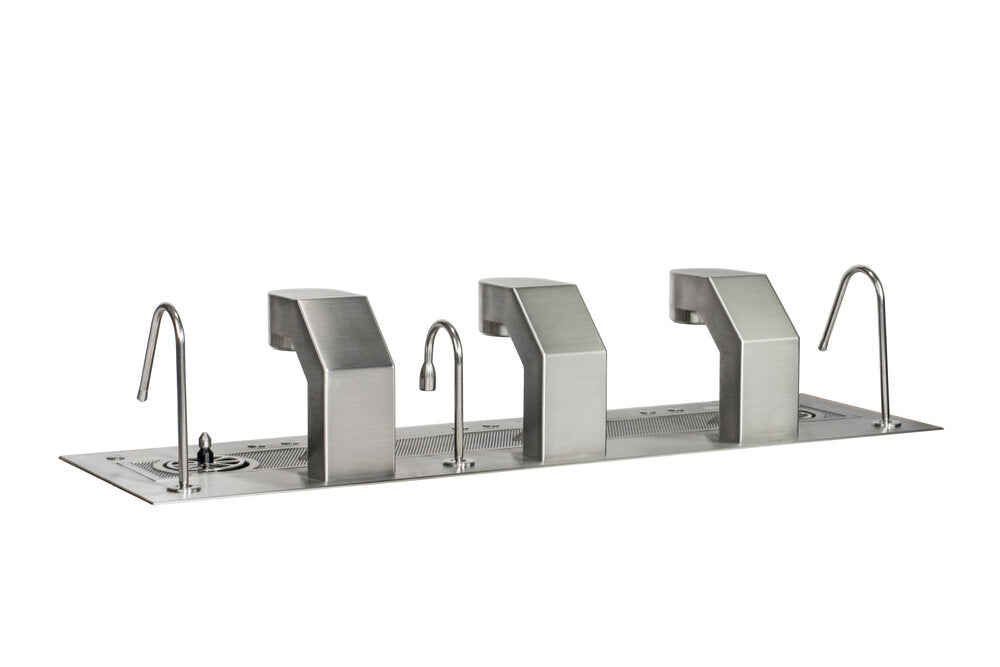

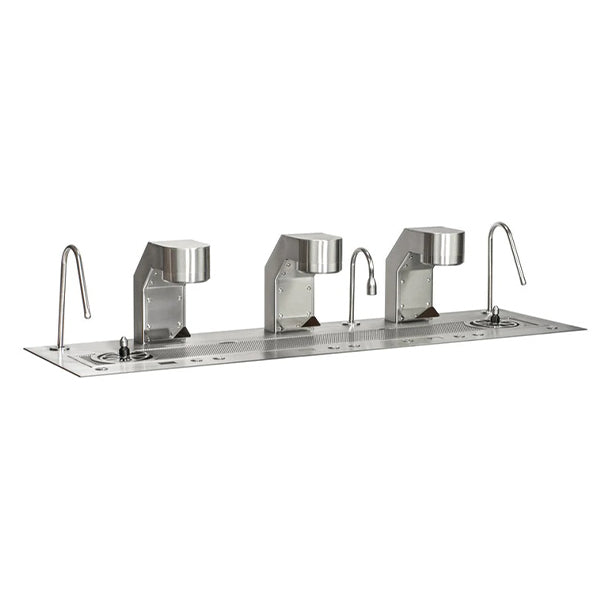

Mavam Three Group Under Counter Espresso Machine
IMPROVED ERGONOMIC WORK FLOW
MAVAM’S LOW PROFILE INTERFACE AND ERGONOMIC DESIGN PROVIDES
EASY WORKFLOW FOR THE BARISTA AND TEMPERATURE RELIABILITY.
Stainless steel brew groups have a built in 200 watt heater assisting with temperature stability
plus three PID control points per Group for temperature stability.
Individual pumps for each brew group allow for uninterrupted brewing pressure
and individual group brewing pressures.
The 11 liter steam boiler is dedicated to producing a large volume of steam pressure while
also preheating the brew group water plus individual 500ml brew boiler per group.
Our patented heated transfer system is used on our steam lines to remove condensation
and provided endless dry steam.
48” / 122cm L x 14” / 35.5cm D x 9” / 23cm H
Boiler Unit Dimensions
28” / 68.5cm L x 18” / 46cm D x 13” / 33cm H
Pump Unit Dimensions
5” / 13cm L x 11” / 28cm D x 8” / 20cm H
Power: Single phase 240 volt
11 Liter copper boiler 4KW
3 x 1 liter 316 Stainless steel boiler 500w
3 x group head heating element 200w
MADE IN SEATTLE, WA
