Modbar Steam Under-Counter Station

Modbar Steam Under-Counter

The Modbar Steam delivers a minimal, modern aesthetic coupled with power and control. Recreate a traditional espresso machine with two Steam systems next to your Modbar Espresso, or set up distinct service areas to suit your workflow. Give your customers a full view of their drink being prepared, from espresso pull to latte art.

Modbar Steam Features

• Double-walled, pro-touch wand
• Chromed tap
• Ergonomic handle designed to match Espresso AV
• Custom handle finishes walnut (standard) or maple
• Omnidirectional ball fitting
• Minimal purge required with no steam valve rebuilds
• Linea-style porthole boiler sight glass
• Simple on/off switch controlled by solenoid in the module

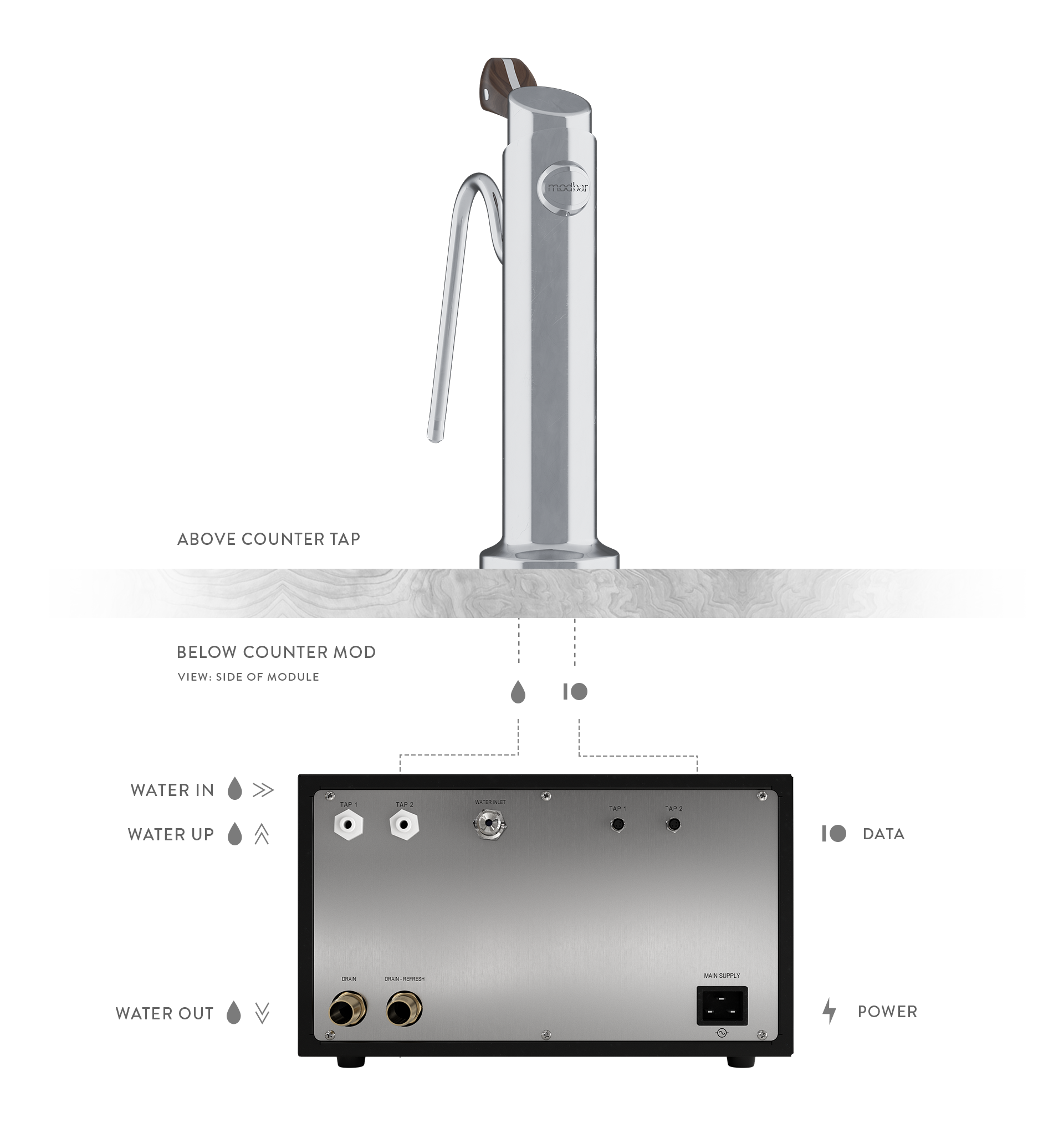

• Right-hand side connections for easy service access

Technical Details

• Dimensions:
• Tap: 3.5”(W) x 12.5”(H) x 11.25”(D)
• Module: 17”(W) x 8.5”(H) x 15”(D)
• Weight:
• Tap: 7.7 lbs
• Module: 40 lbs
• Module Capacity: 4.6L (Dual Boiler)
• Volts: 208V - 240V
• Amps: 14.4 (ETL) / 13 (CE)
• Element Wattage: 3310 (ETL) / 2705 (CE)
• Frequency: 50/60hz
• Certifications: ETL, CE
