Regular price
Dhs. 1,450.00
Sale price
Dhs. 1,450.00
Unit price سعر الوحدة
per
Tax included.

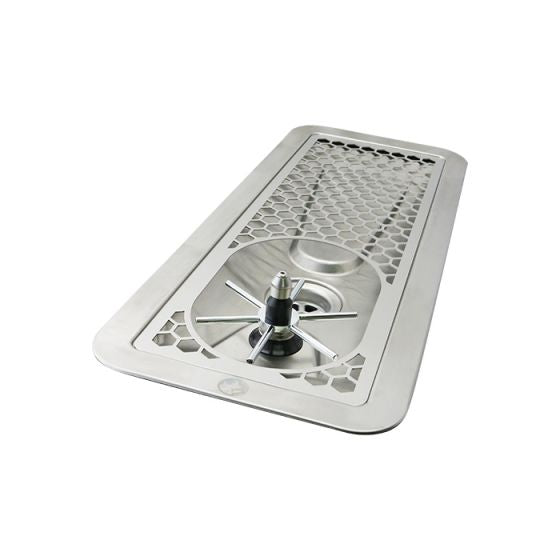

Rhino Coffee Gear's new pitcher rinser design brings with it a number of features you have been asking for!

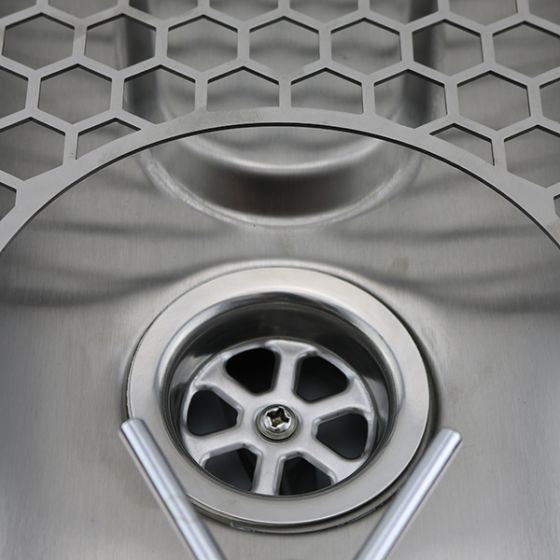

Better Drainage  - The drain tray has an improved design to ensure there is no static build-up of residue along with a generous drain outlet.

Bigger Vessels  - The large actuator plate makes it useful across a broader range of equipment.

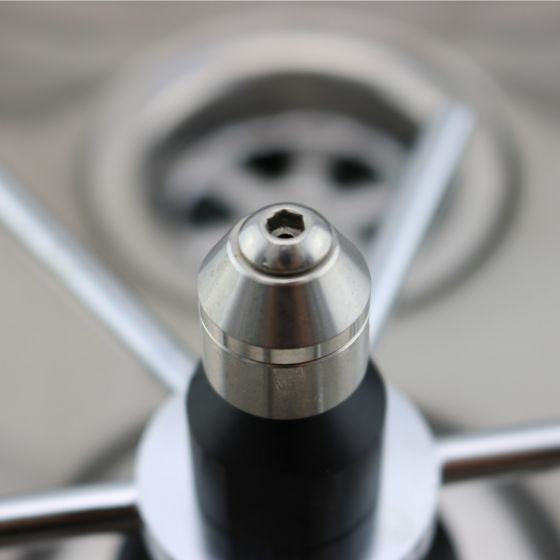

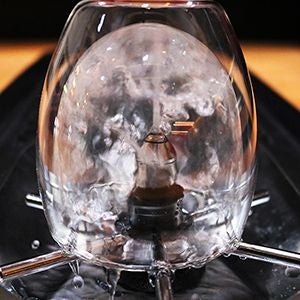

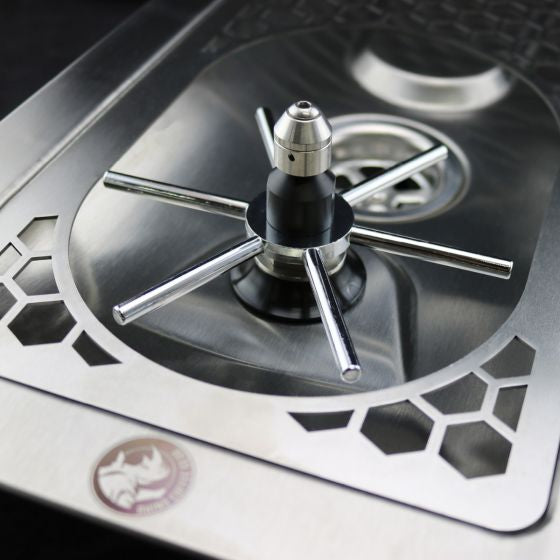

Spinjet Spray Mechanism - The new Spinjet valve sprays and spins at the same time creating a more robust mechanical cleaning action than normal rinsing valves. It is ideal for plungers using tea & coffee grounds, milk, and other residues that tend to hold firm.

Install Parts included with each rinser you will find some fittings and hoses to make installation easier (3/8 push fit inlet plus elbow option, 1 meter of inlet hose and drain hose with clip).

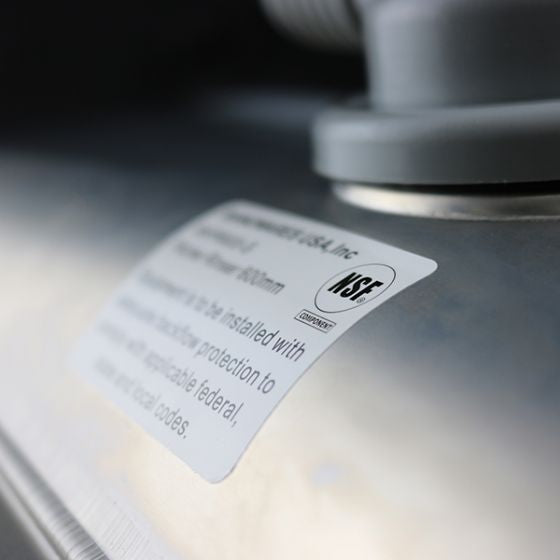

NSF Certified  - All Rhino Coffee Gear Milk Pitcher Rinsers are NSF Certified.

Dimensions (approx): Width - 231mm x Length - 600mm



Depth Requirements:


The Rhino rinsers are 40mm deep, however, this is without fittings. We recommend at least 150mm of clearance under the bench for basic connection (this includes fall for the drain hose). The actual depth may differ depending on the location of the drain, the location of the water supply, or whether you use an elbow or a straight connector.



Give Your Sink a Lift

Don't want to cut into your bench? The Rhino Coffee Gear Vessel Rinser Bench Station has been designed to provide another installation option for cafes, restaurants, bars, and other venues. Perfect for spaces that don't allow for in-bench vessel rinser installations, the Rhino Bench Station lifts the vessel rinser up off the bench in its own stainless steel casing. Bench Station and Rinsers sold separately.

Please note: Due to slight variations in manufacturing design and the varying requirements of bench materials, it is strongly recommended to have the physical pitcher rinser on hand prior to cutting into benchtop surfaces. We take no take responsibility for installation cut-out errors and provides the sizes and dimensions as a layout guide only.

12 months Limited Warranty from the date of original purchase.
Warranty Exclusions
1. Excludes the cost of any associated labor.
2. Standard maintenance on normal wear and tear parts including springs and seals.
3. Damage or fault due to misuse or incorrect installation.
4. Defects that occur due to improper handling or poor water quality.



pdf
(Size: 1.4 MB)
Click here to download the Spec Sheet for this product.
pdf
(Size: 24.8 KB)
Click to view and download the Installation Template for this product.
pdf
(Size: 2.9 MB)
Click to view and download the Cleaning Instructions for this product.
pdf
(Size: 354.7 KB)
Click to view and download the Spinjet Mechanism Exploded View.
