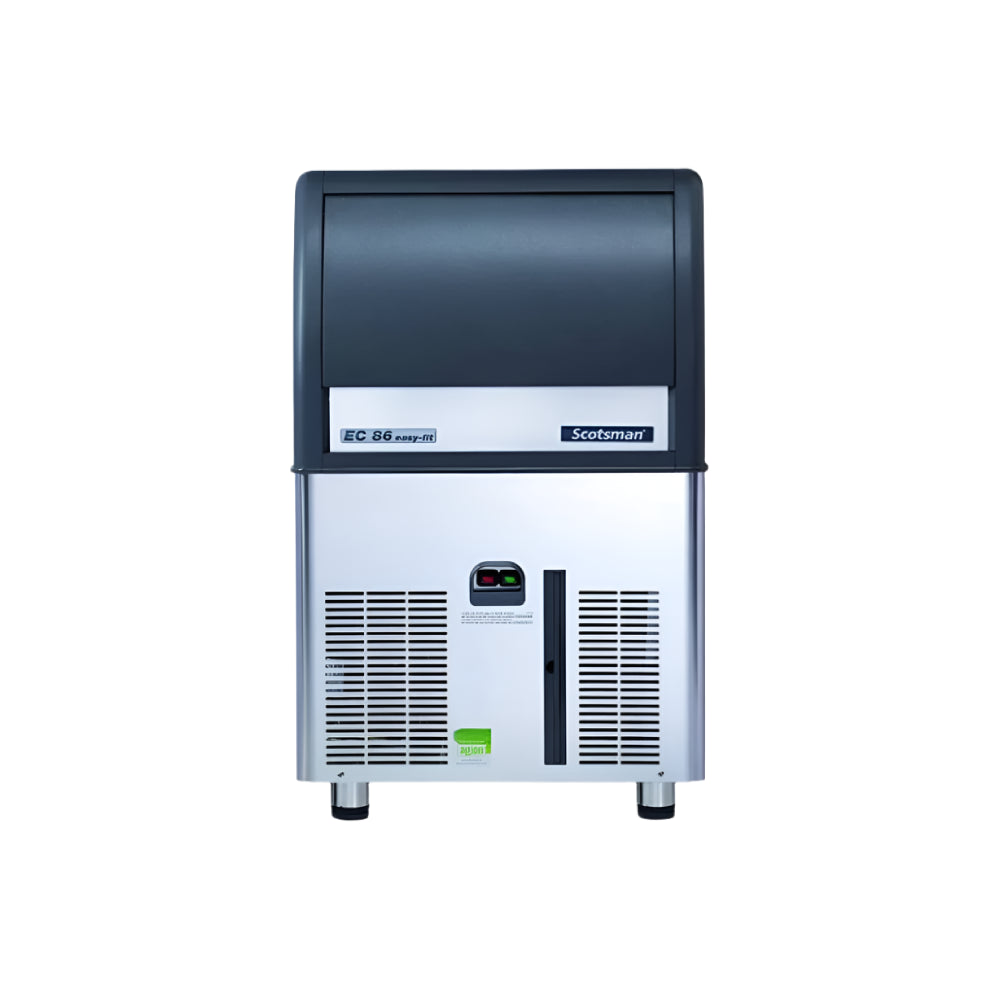

Scotsman ECM86 Self Contained Ice Machine 38kg

Technical Specifications

Cooling System

·   Condensing system: air-cooled / water-cooled

·   Cube size: medium



Production & Capacity

·   Maximum daily production: 38 kg

·   Internal bin capacity: 19 kg



Electrical Specifications

·   Voltage / Frequency / Phase: 230 V / 50 Hz / 1 Phase

·   Instant power consumption: 480 W

·   Compressor power: 1200 W

·   Circuit wires (No. × Ø mm²): 3 × 1.5

·   Maximum fuse size: 10 A



Water Consumption

·   Water usage: 6 L/h



Energy Consumption

·   31 kWh / 100 kg

·   9.4 kWh / 24 h



Dimensions

Unit Dimensions

·   Size (mm): W 531 × D 600 × H 825

·   Net weight: 46 kg



Packaging Dimensions

·   Size (mm): W 600 × D 670 × H 890

·   Packaging weight: 53 kg
